Motherboard

CPU

Integrated Intel®Skylake-U I5 6360U/2.0GHz dual-core four-thread processor TDP 15W

System chip

Based on Intel®Skylake-U SOC platform

Display

Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.5

RAM

2*DDR4 SODIMM memory slot, support dual-channel 2133MHz memory, maximum support 32GB

Front

panel interface

POWER

1*power switch, 1*reset switch

AC LOSS

1*AC LOSS (Toggle switch when power on)

USB

3* USB2.0 interface, 1* built-in USB dongle

SIM

1* SIM card slot, 3G/4G module application

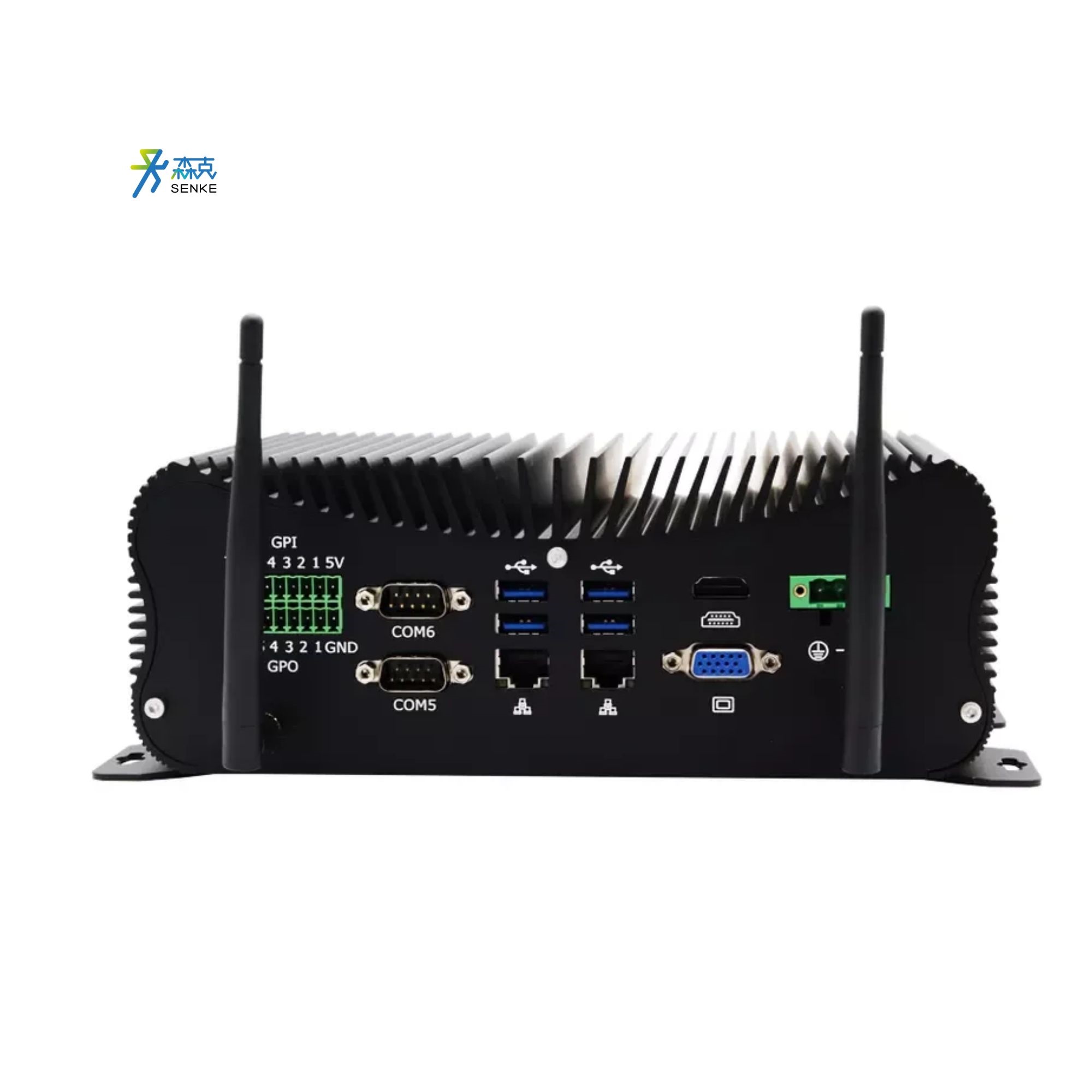

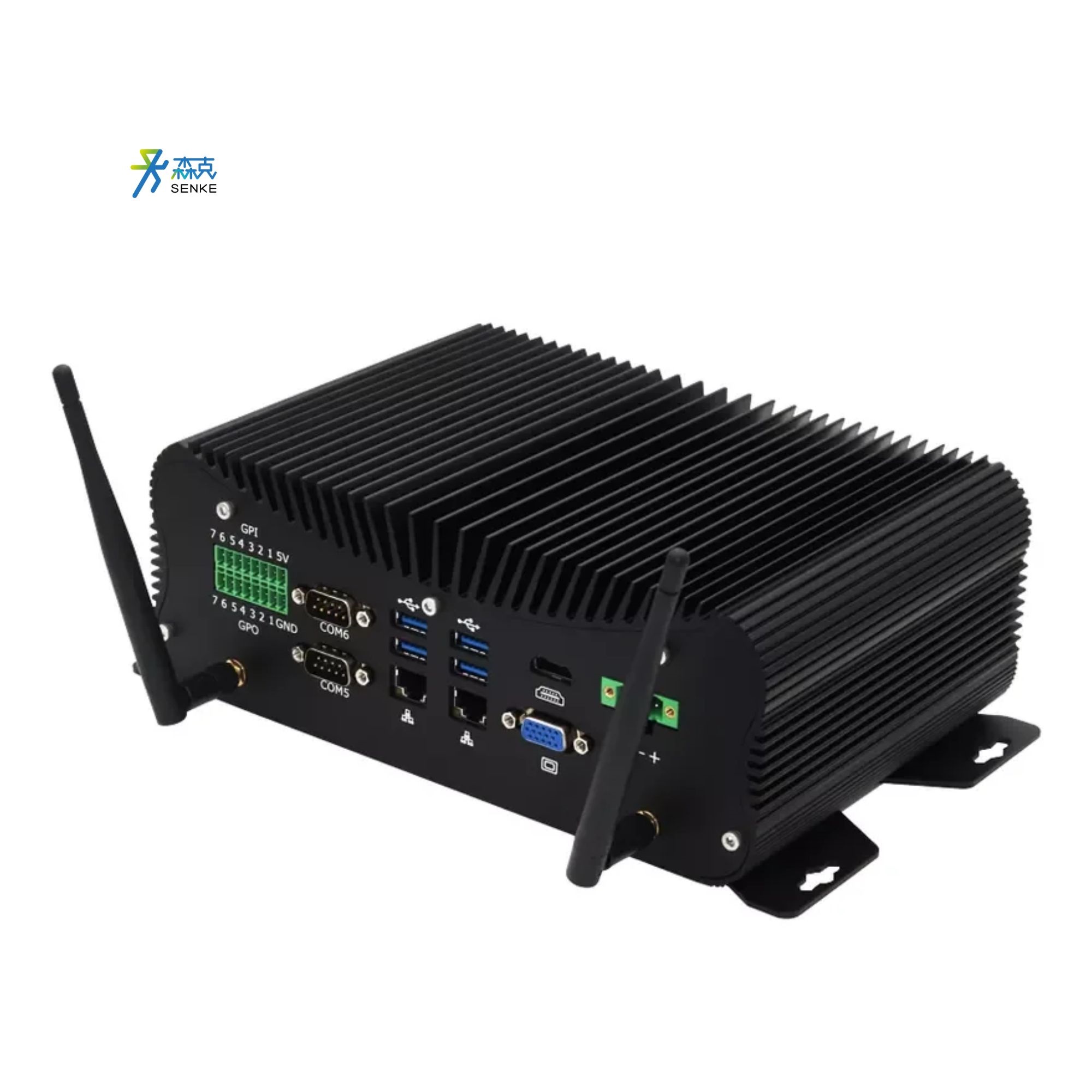

Rear

panel interface

Display interface

1*VGA interface, 2*HDMI1.4 interface

LAN

2*Intel® WGI211AT gigabit network card, support Wake on LAN, PXE function

USB

4* USB3.0 interface

COM

6* RS232 (2*DB9 interface supports RS232; the other supports 4*RS232/485 phoenix terminals, and optical isolation)

Phoenix terminal

2*10pin, support 4 RS232/485 serial ports with isolation, four-in and four-out GPIO with isolation, switch, 5V

PS2

1*PS2 interface

Audio

1* Line out interface, 1* MIC interface

power supply

1* DC power adapter interface, 1* 3pin power interface, support 9~36V power input

Storage

SATA

1*2.5 inch hard drive expansion

Solid state drive

1* MSATA SSD solid state drive expansion, transmission speed up to 6Gbps

Expand

Mini PCIE

1* Mini PCIE slot, support WIFI/4G module

  M.2

1* M.2 slot, support M.2 2260/2280 NVME PCIE standard SSD

Software support

Microsoft Windows

Windows 10, 64bit (without key)

Linux

Ubuntu

Watch Dog

Support hardware reset function (256 levels, 0~255 seconds)
