Specification

Product Overview

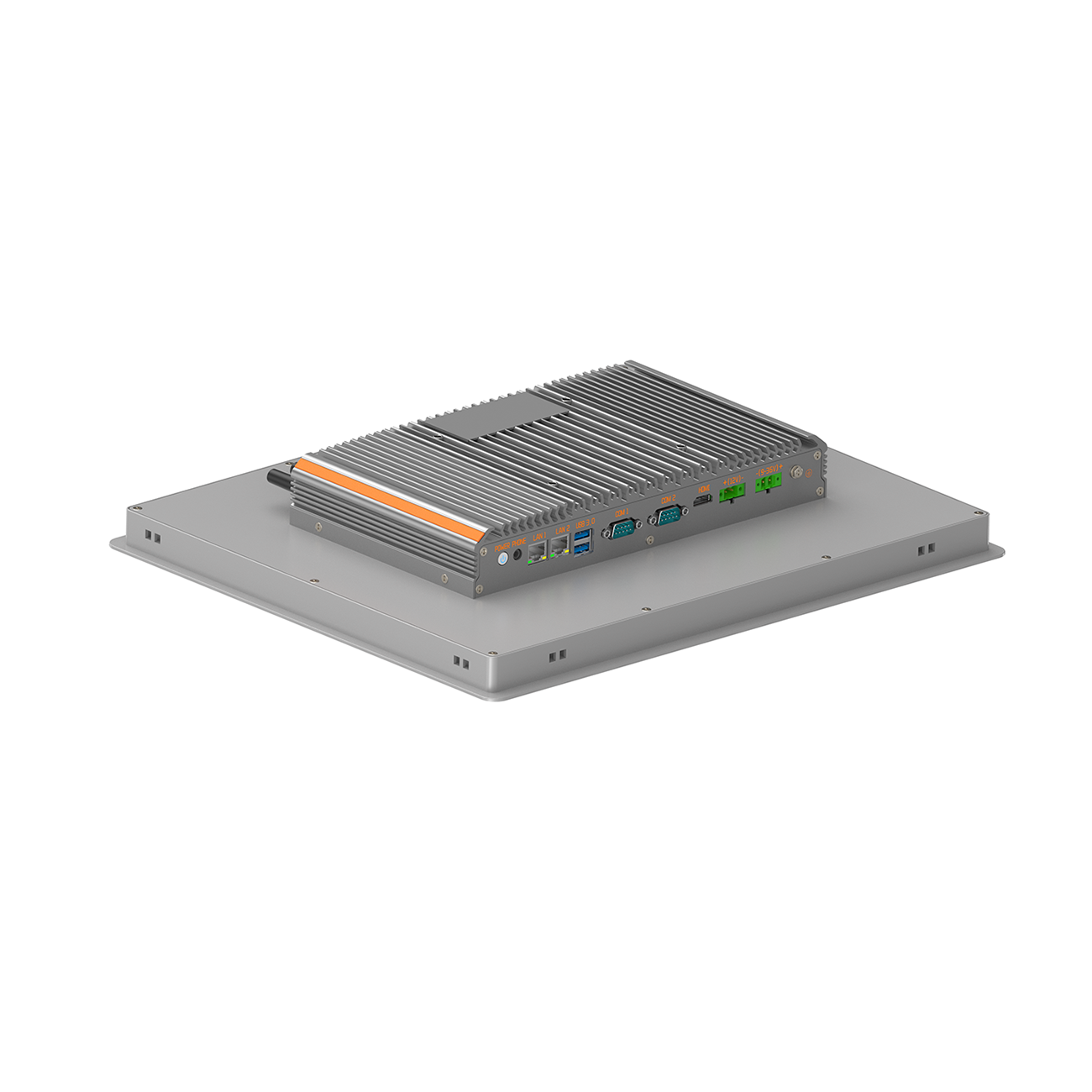

The industrial control all-in-one machine is made of all-aluminum material, customized with exclusive die-casting mold, and efficient fin-type heat dissipation structure. It can adapt to various complex and harsh application scenarios with high dust and work stably in high and low temperature environments.
    The whole machine is equipped with a variety of professional interfaces. While meeting the needs of conventional application scenarios, it can also add customized functions and interfaces according to different application scenarios.

Product application scope

• Automation control terminal
• Edge computing terminal
• HMI Human Machine Interface
• MES system execution terminal
• Visual inspection terminal
• SOP Workstation

​​​​​Product Parameters

Product Specification

Product Feature

- 10 inch LCD screen with LED backlight, customized size is available

- IP65 waterproof and dustproof front panel

- Intel®4th generation Pentium 3558U DDR3-4G SSD-32G

- Resistive touch or 10 point projection capacitive touch

- Fanless design with low power consumption

- 10 industrial panel pc is made by all aluminum die-casting molds

- Support 9V- 36V wide voltage

- 100mm*100mm VESA mount, embedded, desktop, wall mounted installation way is available

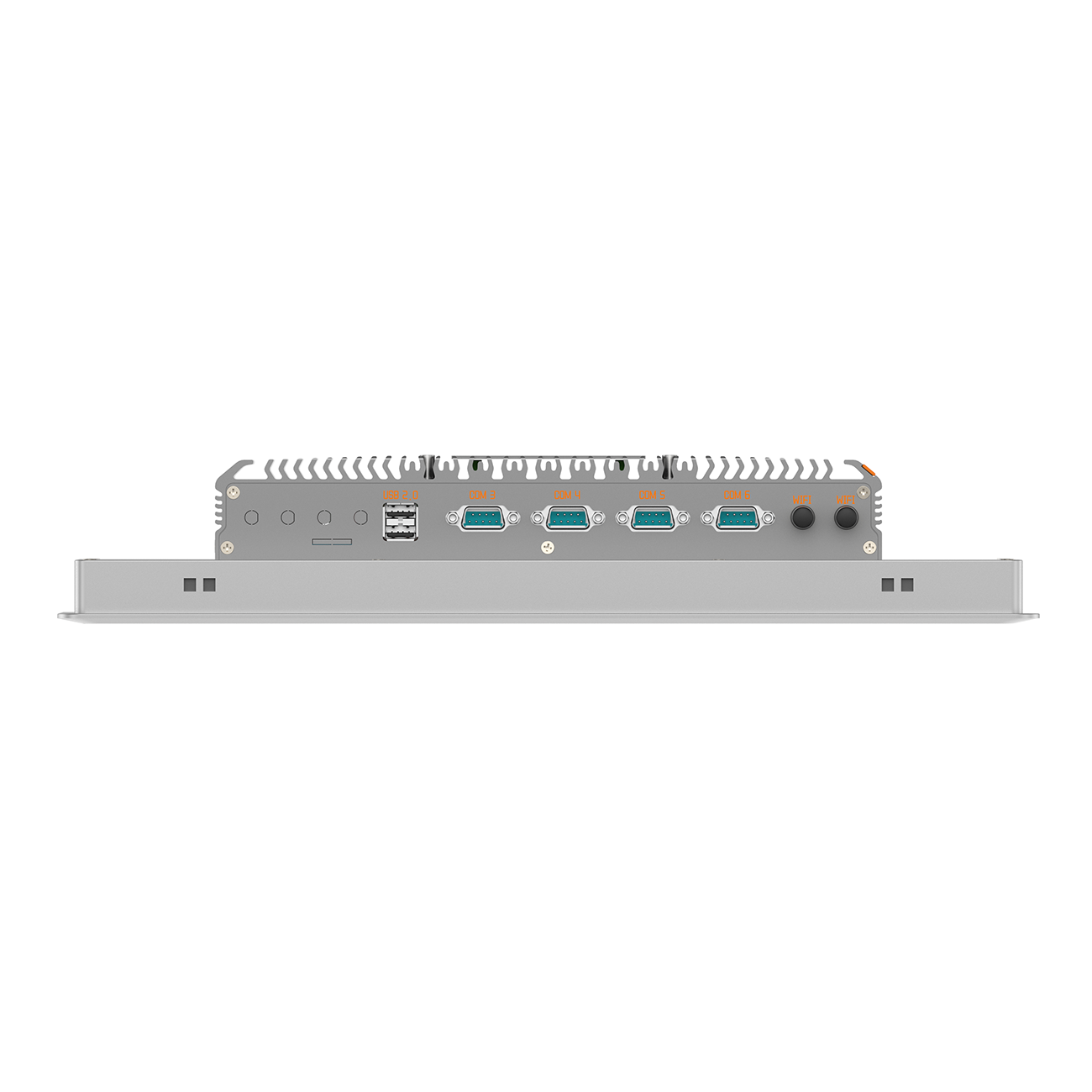

- Rich I/O, including HDMI, RS232/RS485, USB, Gigabit Ethernet port, GPIO, etc.

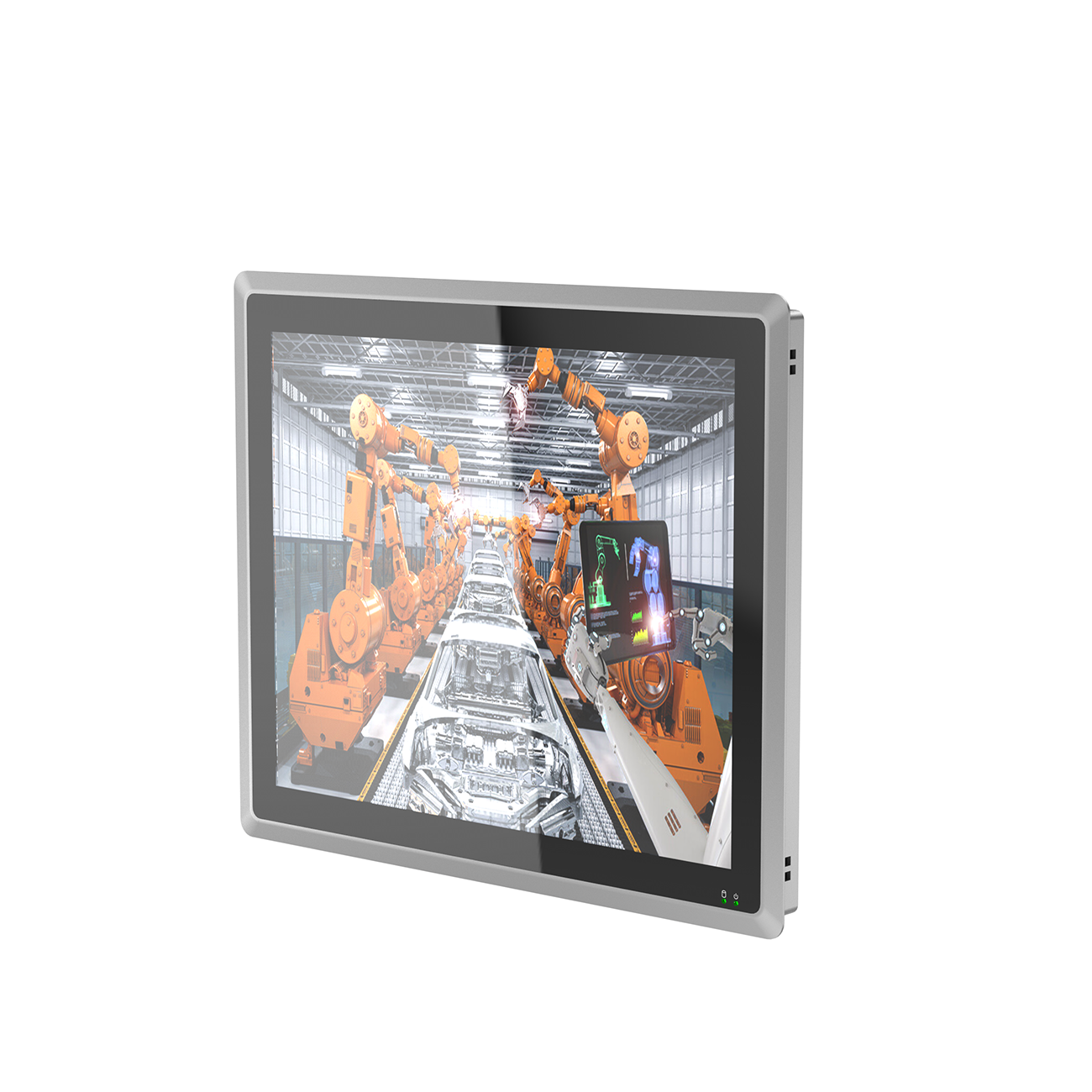

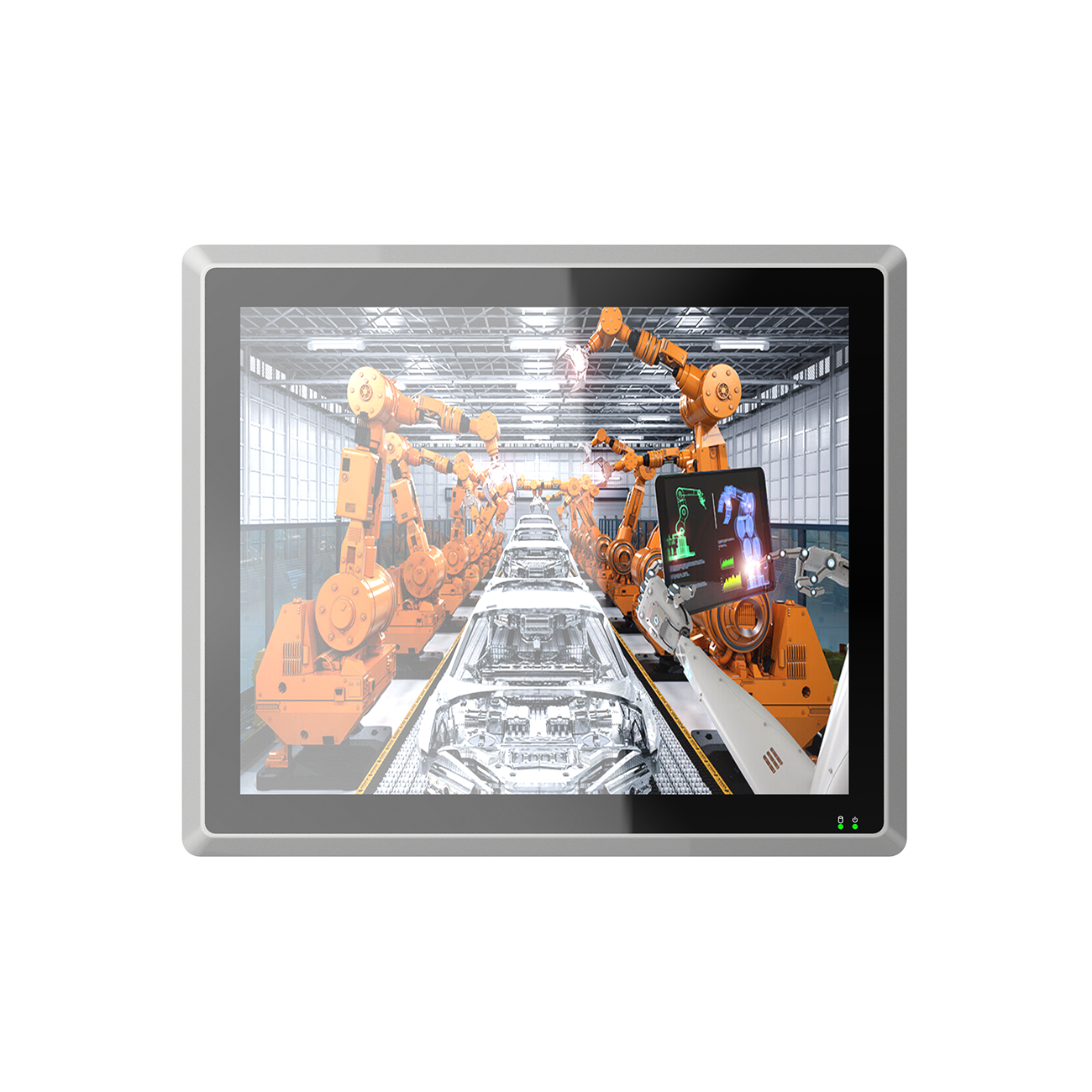

The industrial touch panel adopt the advanced LCD display and is available in not only projection capacitive 10-point touch, but also resistive touch screen. It is suitable for industrial environments and applications, for example, working as monitoring displays with touch functionality for automation production.

Embedded IPC Installation

1. Confirm the size of the holes in the cabinet, and put the machine in the cabinet

2. After plugging in the machine, confirm whether there is any problem with the surrounding distance

3. Then take out the four buckle brackets that come standard with the machine

4. Align the buckle with the buckle hole of the machine, and install two on the left and right side.

5. As shown in the figure, the effect of snapping on the panel

6. Fasten the buckle brackets on both sides and lock them with a cross knife.Pay attention to the intensity of use here

7. Make sure that the buckle brackets are all fixed, and you can swing the panel to make sure it will not loosen

8. After installing the buckle embedded IPC renderings
