Industrial Panel PC SK-YPC-ZDH
SK-YPC-ZDH
ZDserise Full Aluminum Fanless Design
Features:
1. Size: 10.4” 12.1”15” 17” 19”
2. Embedded & VESA design with sturdy aluminum enclosure & fanless
3. Support PCAP or resistive touch
4. IP65 (front) for water and dust protection
5. Powered by Android or Pentium 3556U / 3558U / CeleronJ6412 / Intel Core i3/i5/i7
6. Support 12V/24V DC lockable phoneix power connector
1. Size: 10.4” 12.1”15” 17” 19”
2. Embedded & VESA design with sturdy aluminum enclosure & fanless
3. Support PCAP or resistive touch
4. IP65 (front) for water and dust protection
5. Powered by Android or Pentium 3556U / 3558U / CeleronJ6412 / Intel Core i3/i5/i7
6. Support 12V/24V DC lockable phoneix power connector
Industrial Panel PC
4:3 Touch Screen Computer Solutionl (lP65 Front panel fanless)

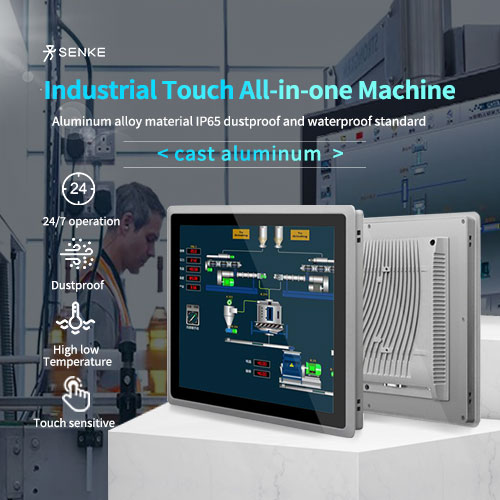

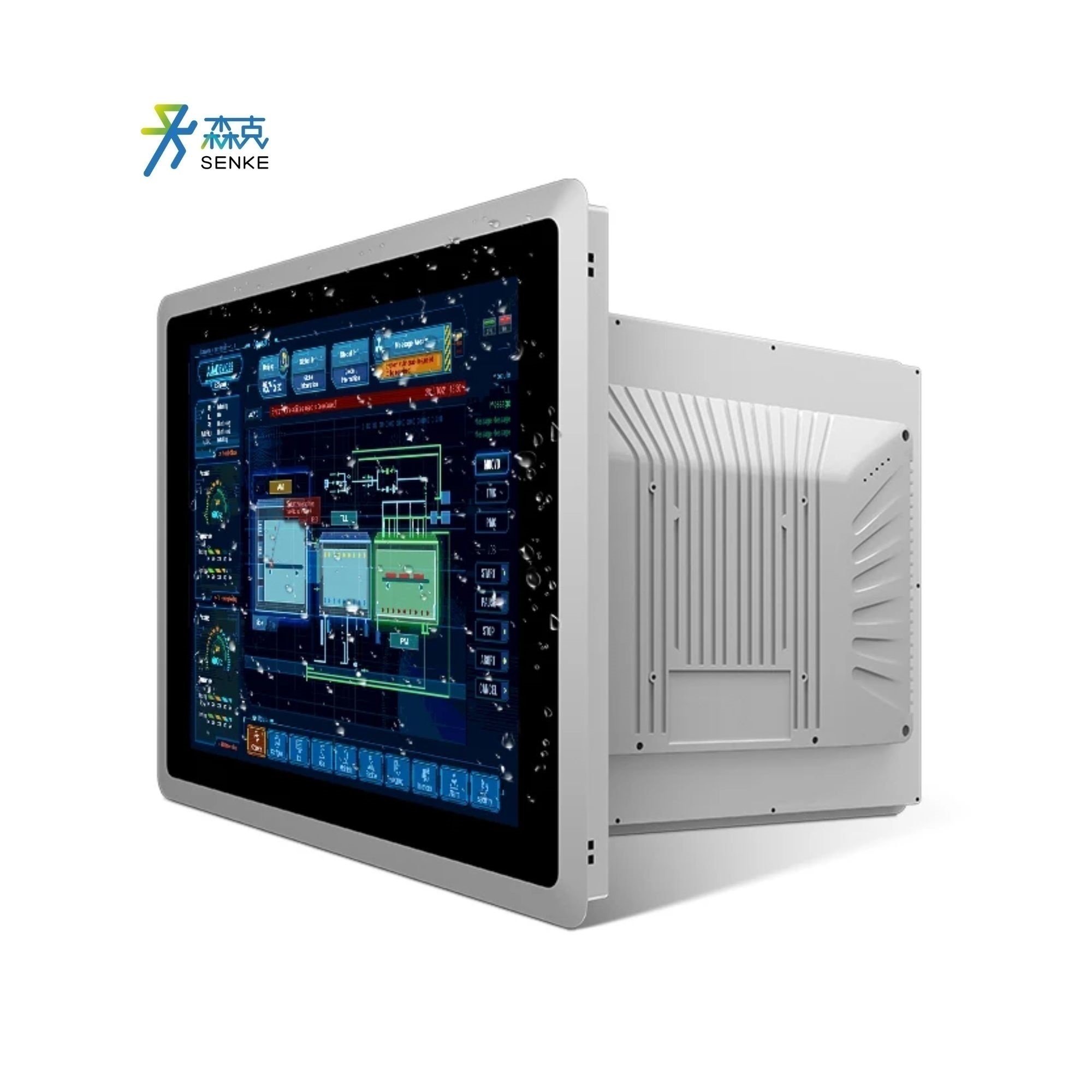

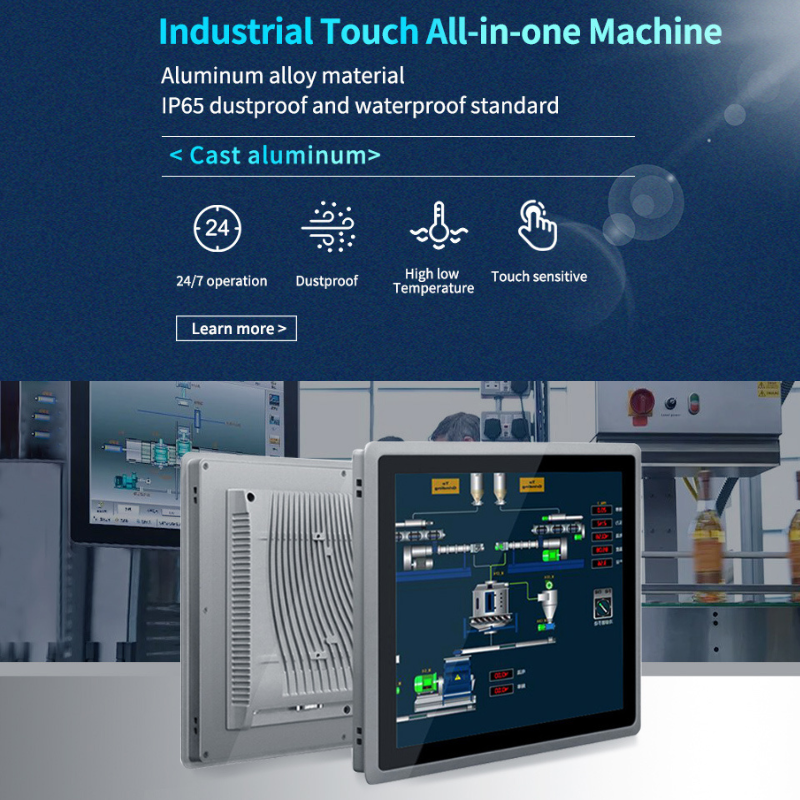

4:3 Fanless Serials Panel PC is made by catsting aluminum alloy, it has a more stronger structure,strong heat dissipation ability, anti-electromagnetic interference ability. It is a great computing solution when your application requires the PCs to be integrated into equipment.
Specification
| Product name | Industrial touch screen panel pc |
| Material | Full aluminum enclosure, stainless steel is available |
| Resolution | 1024*768 |
| Panel size | 10.4inch, 12.1inch, 15inch, 17inch, 19inch |
| Screen type | LCD, (PCAP)Projected capacitive touch screen, Multi-touch |
| Screen ratio | 4:5 |
| OS | Support Windows/Linux/Android/Ubuntu |
| Motherboard | Intel Pentium 3558U/3556U,4G,32G |
| Network | 2*RJ45 with 1000 Base-T |
| COM | RS485/RS232/RS422 |
|
WIFI,3G/4G modular |
802.11b/g/n（optional）,Support 3g/4g （optional） |
| Power supply | 1*DC lock phoenix terminal，Support 9-36V |
| Installation ways | Embedded、VESA100*100mm、wall mount、desktop |
Product Specification
|
Industrial panel pc |
SK-ZDH10GB |
SK-ZDH12GB |
SK-ZDH15GB |
SK-ZDH17GB |
SK-ZDH19GB |
|
|
Motherboard |
Configuration |
Intel®4th generation Pentium 3558U/ DDR3-4G/SSD-32/64/128G |
||||
|
Upgrade 1 |
Intel@4th Core i3-4005U, DDR3-4G, SSD-64G/128G |
|||||
|
Upgrade 2 |
Intel@4th Core i5-4200U, DDR3-4G, SSD-64G/128G |
|||||
|
Upgrade 3 |
Intel@4th Core i7-4500U, DDR3-4G, SSD-64G/128G |
|||||
|
Interface |
WiFi, 3/4G module |
802.11b/g/n (optional), Support 3g/4g (optional) |
||||
|
HDMI |
1*HDMI output |
|||||
|
USB |
4*USB 3.0 |
|||||
|
Network |
2*RJ45 with 1000 Base-T |
|||||
|
Com |
2* COM(RS232), can changed to RS485 or add more 2 to 4 RS232 |
|||||
|
Power supply |
1*DC lock phoenix terminal, Support 9-36V |
|||||
|
Audio output |
1*3.5mm audio |
|||||
|
Other |
8*GPIO (optional) |
|||||
|
Display |
Size(inch) |
10.4inch |
12.1inch |
15inch |
17inch |
19inch |
|
Screen type |
LCD screen with LED backlight |
|||||
|
Resolution |
1024*768 |
1024*768 |
1024*768 |
1280*1024 |
1280*1024 |
|
|
Size(mm)(W)*(H) : |
210.4×157.8 |
245.7×184.3 |
304.1×228.1 |
376.3×301.1 |
376.3×301.1 |
|
|
Contrast ratio |
500:1 |
500:1 |
700:1 |
900:1 |
900:1 |
|
|
Brightness |
200cd/㎡ |
200cd/㎡ |
250cd/㎡ |
250cd/㎡ |
250cd/㎡ |
|
|
Screen ratio |
4:3 |
4:3 |
4:3 |
5:4 |
5:4 |
|
|
Structure |
Front and back cover |
Aluminum |
||||
|
Craft |
Glass frame paste, aluminum die casting |
|||||
|
Color |
Black, grey |
|||||
|
Heat dissipasion |
Fanless, aluminum fin heat dissipation |
|||||
|
Panel indicator light |
Power state, hard disk state |
|||||
|
Whole size(mm) |
281*228*56.8 |
315*254*56.8 |
304*2941*55.3 |
404*341*56.3 |
445*3756*59.3 |
|
|
Touch screen |
Type |
Projected capacitive touch screen |
||||
|
Touch point |
10 point capacitive touch |
|||||
|
Physical Resolution |
4096x4096 |
|||||
|
Response time |
＜5ms |
|||||
|
Accuracy |
＜2.5mm |
|||||
|
Transparency |
≥90% |
|||||
|
Protection |
The surface is coated with 1:1 PVC protective film |
|||||
|
Others |
Working environment |
-20℃～ 70℃; Humidity: 10%～ 90% |
||||
|
Storage environment |
Temperature: -40℃～80℃; Humidity: 10%～90% |
|||||
|
Installation ways |
Embedded, VESA100*100mm |
|||||
|
Power consumption |
24W |
25W |
33W |
34W |
37W |
|
|
Accessories |
Manual |
User Manual, certificate of qualification, warranty card |
||||
|
Bracket |
wall mounted bracket, embedded bracket, desktop bracket(optional) |
|||||
|
Adapter |
Power adapter |
|||||
Product Feature
- 10 inch LCD screen with LED backlight, customized size is available
- IP65 waterproof and dustproof front panel
- Intel®4th generation Pentium 3558U DDR3-4G SSD-32G
- Resistive touch or 10 point projection capacitive touch
- Fanless design with low power consumption
- 10 industrial panel pc is made by all aluminum die-casting molds
- Support 9V- 36V wide voltage
- 100mm*100mm VESA mount, embedded, desktop, wall mounted installation way is available
- Rich I/O, including HDMI, RS232/RS485, USB, Gigabit Ethernet port, GPIO, etc.
The industrial touch panel adopt the advanced LCD display and is available in not only projection capacitive 10-point touch, but also resistive touch screen. It is suitable for industrial environments and applications, for example, working as monitoring displays with touch functionality for automation production.
High and low temperature resistant design, through a controllable temperature test, the product can adapt to temperatures from -20℃ to 55℃, and can be used normally even in harsh
Environments.
Embedded IPC Installation
1. Confirm the size of the holes in the cabinet, and put the machine in the cabinet
2. After plugging in the machine, confirm whether there is any problem with the surrounding distance
3. Then take out the four buckle brackets that come standard with the machine
4. Align the buckle with the buckle hole of the machine, and install two on the left and right side.
5. As shown in the figure, the effect of snapping on the panel
6. Fasten the buckle brackets on both sides and lock them with a cross knife.Pay attention to the intensity of use here
7. Make sure that the buckle brackets are all fixed, and you can swing the panel to make sure it will not loosen
8. After installing the buckle embedded IPC renderings
Application
Industrial tablet pc is ideal for industrial and commercial applications, suitable for various kinds of application, industries, car repair shops, security, factory, business, financial and projects.
