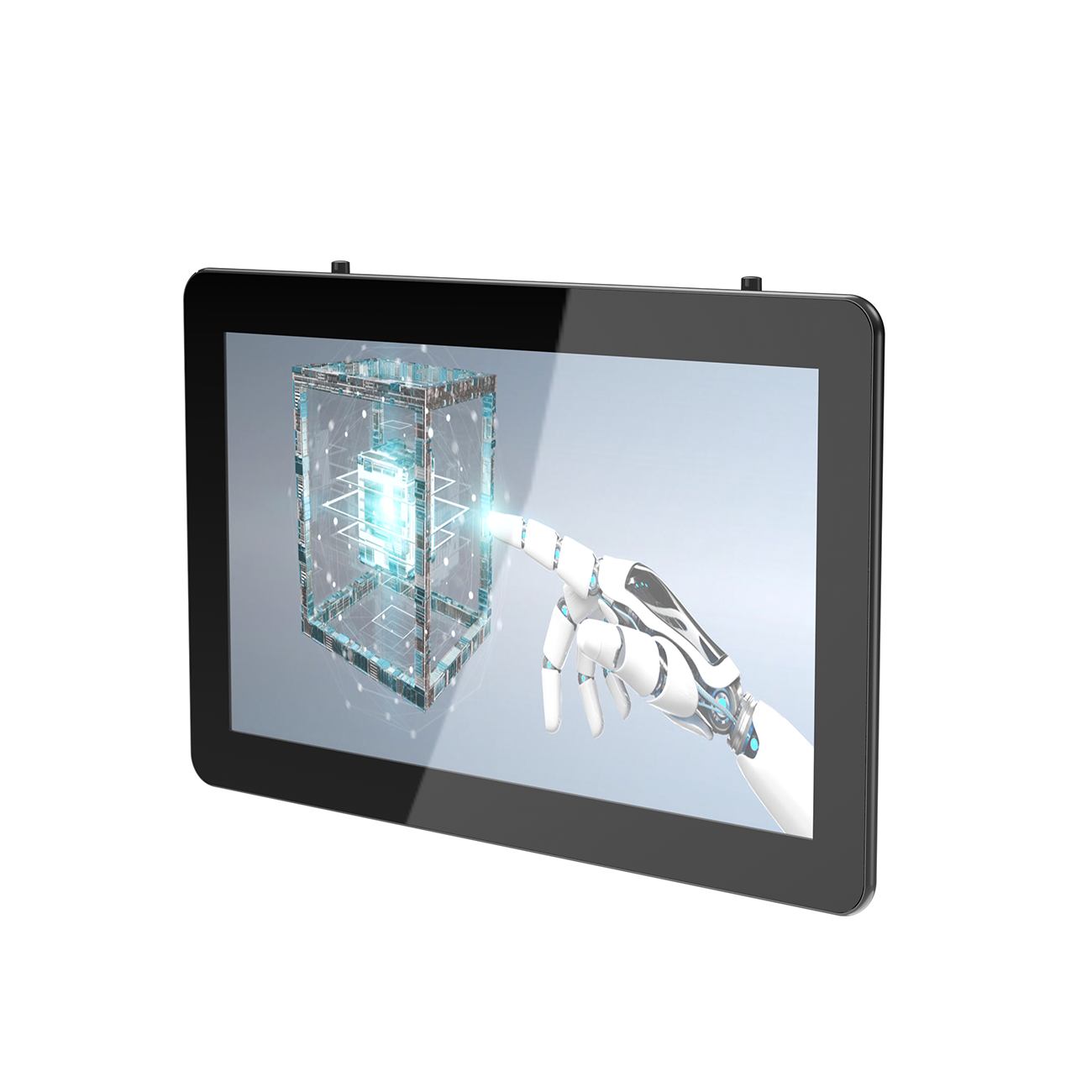

15.6" Linux Industrial Pc
SK-YPC-WD156h
15.6 ” WDserise Windows 7 ；Windows 10；Windows 11; Linux;
Intel J1900;
Celeron J6412 ;
Intel 3rd generation Core i5 processor ;
Intel 7th generation Core i3\i5 processor ;
Intel 12th generation Core i3\i5 processor;
- Size: 13.3” 15.6”18.5” 21.5” 23.6” 27”
- Powered by Android or Pentium/Celeron/Intel Core i3/i5/i7
- IP65 (front) for water and dust protection
- 500nits/700nits/1000nits high-brightness touchscreen for optional
- 10 point PCAP touch and resistive touch
- Embedded&VESA mount
- Powered by Android or Pentium/Celeron/Intel Core i3/i5/i7
- IP65 (front) for water and dust protection
- 500nits/700nits/1000nits high-brightness touchscreen for optional
- 10 point PCAP touch and resistive touch
- Embedded&VESA mount
15.6" Linux Industrial Pc
Senke Industrial Motherboard; Cast Aluminum Shell; Die-Casting Process; Fanless Fully Enclosed Design, Dustproof, Zero Silence, Stable And Reliable, Strong Anti-Electromagnetic Interference Ability
Product Overview

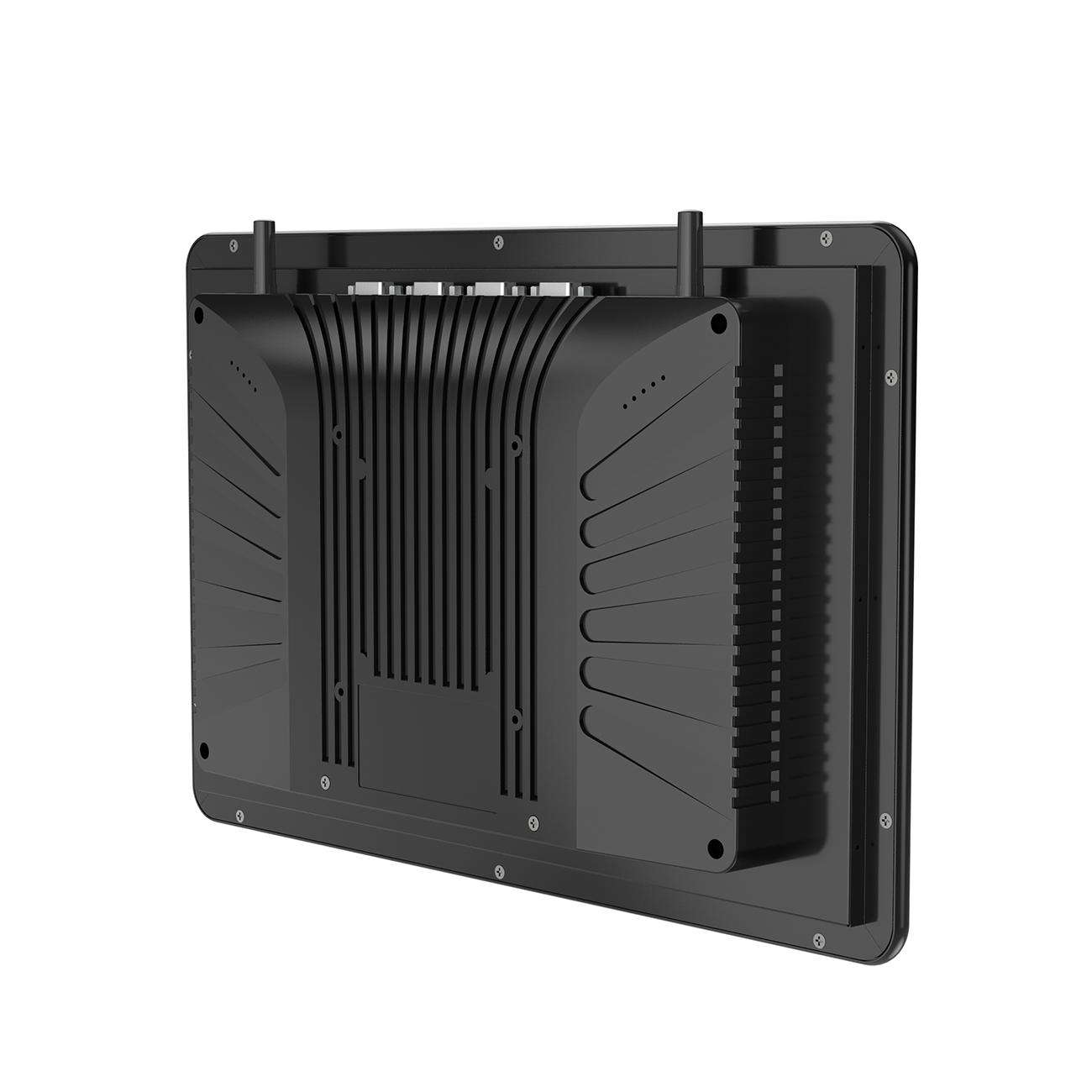

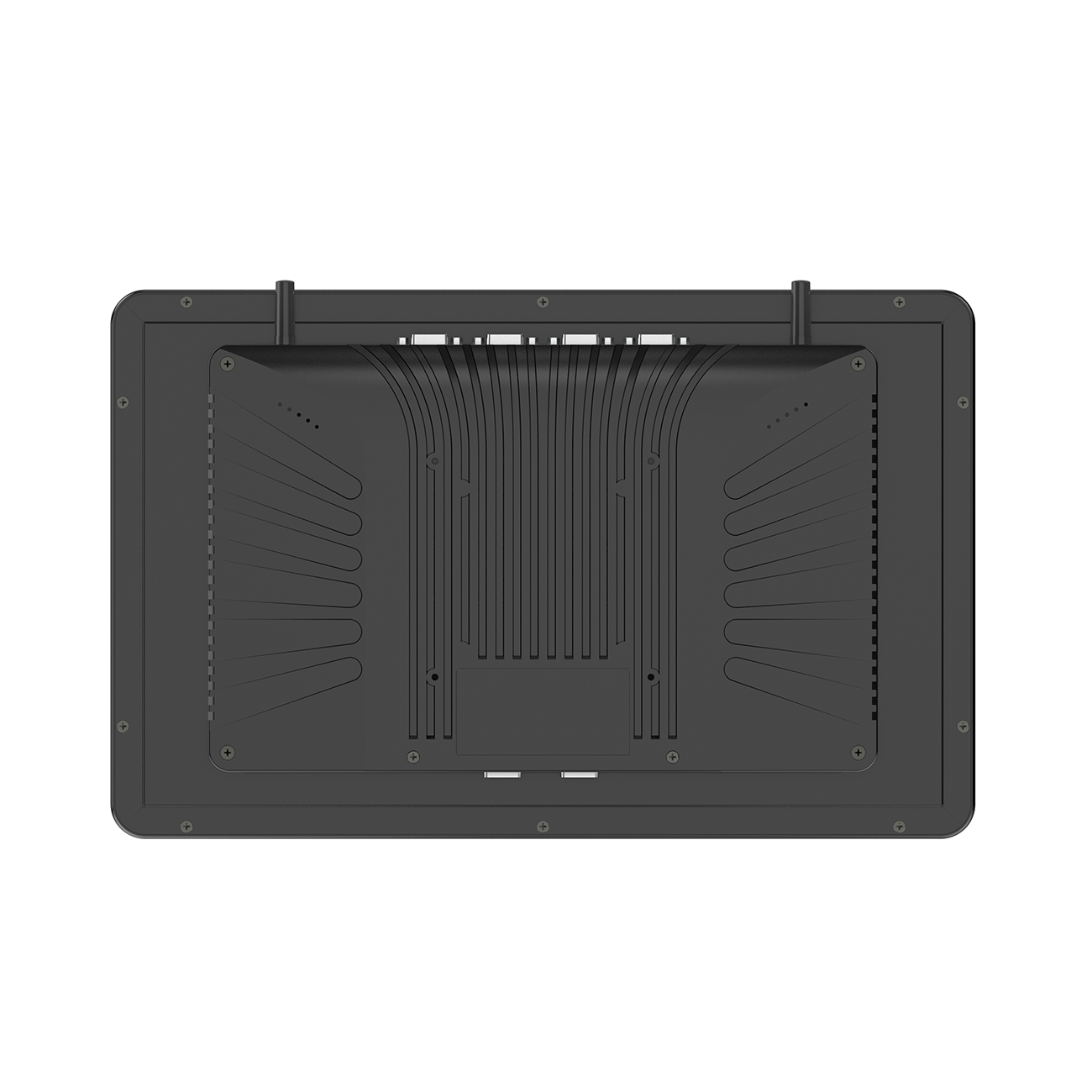

The industrial control all-in-one machine adopts industrial-grade aluminum profile structure, customized aluminum alloy die-casting mold, and efficient fin-type heat dissipation structure. It can adapt to various complex and harsh application scenarios with high dust and work stably in high and low temperature environments.
The whole machine is equipped with a variety of professional interfaces. While meeting the needs of conventional application scenarios, it can also add customized functions and interfaces according to different application scenarios.
Product Features
- Built-in industrial motherboard with powerful performance, optional configuration, flexible interface expansion and strong compatibility
- Customized aluminum alloy die casting mold
- Customized industrial-grade aluminum profile front frame structure
- The product has passed and obtained high and low temperature, EMC, safety and other test reports
- Supports multiple installation methods such as embedded/wall mount/desktop base/cantilever bracket
Product application scope
- Automation control terminal
- Edge computing terminal
- HMI Human Machine Interface
- MES system execution terminal
- Visual inspection terminal
- SOP Workstation
Product Parameters
|
Basic parameters |
Host Configuration |
||
|
screen size |
15.6 inches |
Motherboard |
DB01 series industrial motherboard |
|
Resolution |
1920*1080 |
processor |
Intel i5-33 3 7U |
|
screen ratio |
16:9 (H:V) |
platform |
Ivy Bridge |
|
brightness |
250 cd/m² (Typ.) |
Memory |
DDR3 4G |
|
Contrast |
3000 : 1 |
Hard drive capacity |
128G |
|
Display Color |
262K/16.7M |
Graphics |
Integrated graphics: Intel HD Graphics 4000 |
|
Reaction time |
16 (Typ.)(Tr+Td) ms |
BIOS |
1. AMI BIOS |
|
Viewing angle |
85/85/85/85 (Typ.)(CR≥10) |
operating system |
Windows 7 |
|
Dimensions |
400.4*254.4*45.9mm |

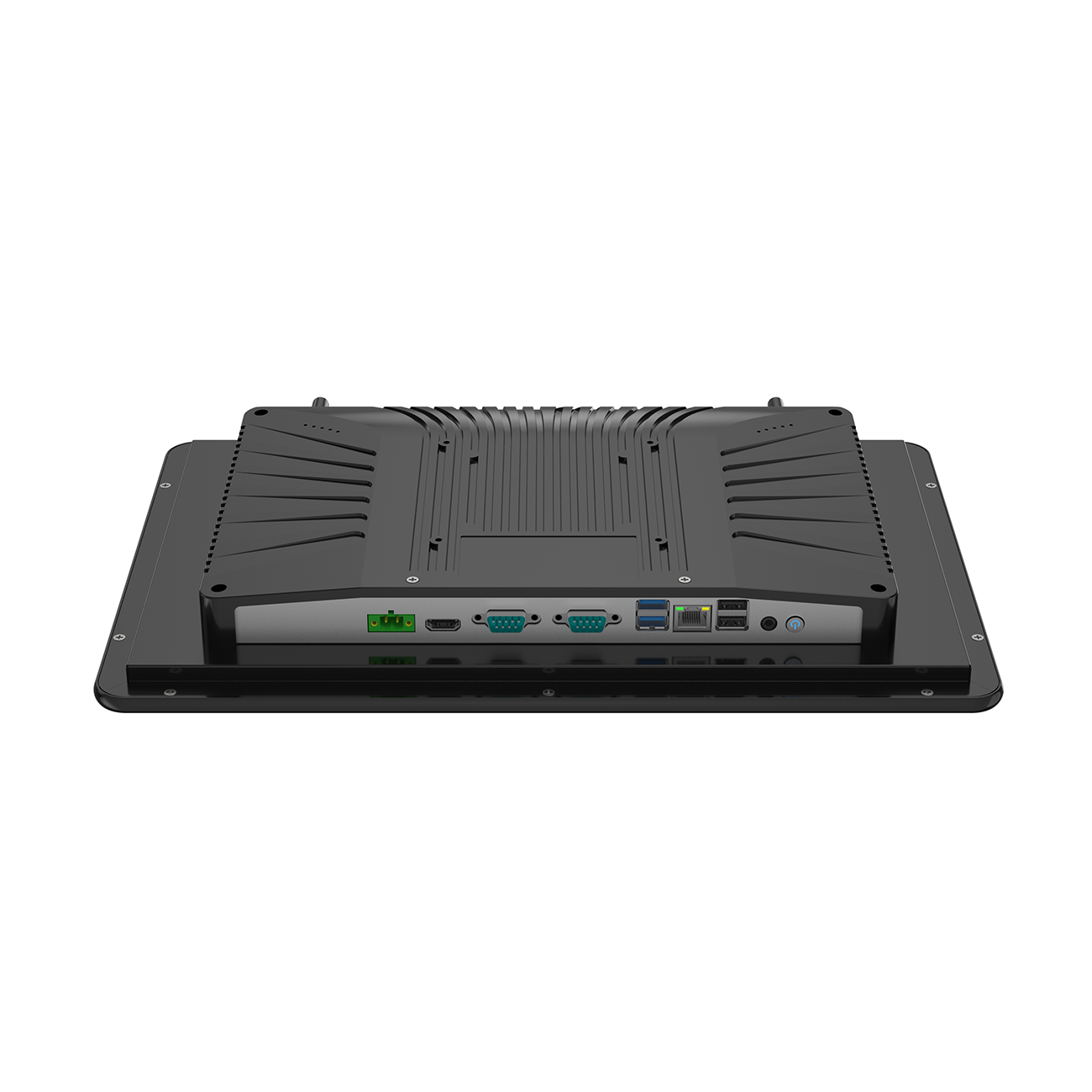

Host interface |
|
|
Hole Size |
376*226mm |
DC Power Supply |
1*DC IN Phoenix terminal |
|
Touch Type |
G+G capacitor |
HDMI |
1*HDMI OUT |
|
working environment |
0℃-50℃ (10～90% without condensation) |
USB |
2*USB3.0,4*USB2.0 |
|
Storage environment |
-20℃-70 °C (10～90% without condensation) |
COM |
2*DB9-RS232/RS845 (optional) 4*DB9-RS232 |
|
Power Specifications |
DC: 12V |
LAN |
1* LAN/2* LAN |
|
Material\Craftsmanship |
Aluminum profile structure, aluminum alloy cast aluminum back cover |
WIFI |
2.4G (standard) / 5.0G (optional) |
|
color |
grey |
Audio |
1*PHONE (output) |
|
Installation |
Embedded, wall-mounted, desktop |
switch |
1*Start switch + indicator light |
